StormTank (Brentwood Industries)
The StormTank product line is engineered to meet the most stringent industry performance standards and provide a flexible solution to varying project demands. Utilized for infiltration, detention, reuse, and pretreatment purposes, our products offer an affordable and sustainable solution for stormwater management.

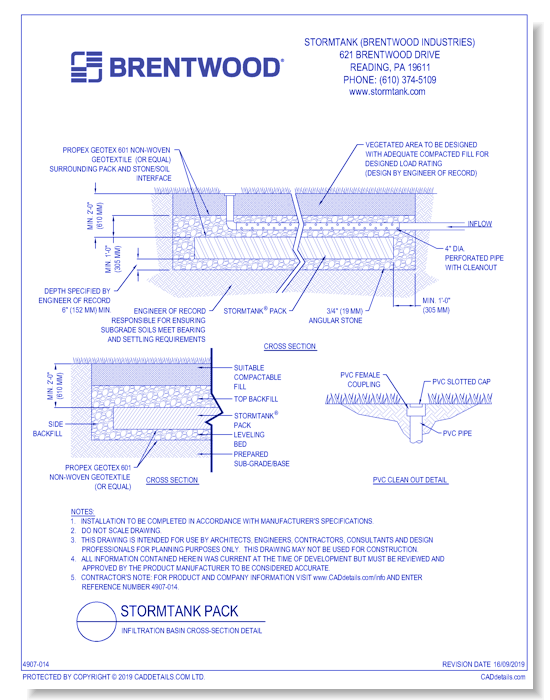

StormTank Pack: Infiltration Basin Cross-Section Detail
The StormTank Pack is the light-duty solution for subsurface stormwater management. It provides a cost-effective alternative for non-load-bearing applications and is commonly utilized under landscaped areas such parks, plazas, and backyards. The Pack is designed for optimum infiltration and integration in bio-retention and rainwater harvesting applications.
StormTank Pack: Infiltration Basin Cross-Section Detail
The StormTank Pack is the light-duty solution for subsurface stormwater management. It provides a cost-effective alternative for non-load-bearing applications and is commonly utilized under landscaped areas such parks, plazas, and backyards. The Pack is designed for optimum infiltration and integration in bio-retention and rainwater harvesting applications.
- About
- Select All
- Media
- CAD PDF
- CAD DWF
- CAD DWG
- CAD GIF
- CAD VWX
- CAD DXF
- Specs Specs
StormTank Pack: Infiltration Basin Cross-Section Detail
VIEWING
StormTank Pack: Detail
StormTank Pack: Bio-Retention Cross-Section Detail
StormTank Pack: Rainwater Harvesting Cross-Section Detail
StormTank Pack: Detention Basin Cross-Section Detail
StormTank Pack: Pervious Paver Cross-Section Detail
