CycleSafe, Inc. ProPark Bike Lockers ProPark Locker - View Thru
CycleSafe, Inc. logo

CycleSafe, Inc.

At CycleSafe we have a vision - we want to promote cycling, raise the profile of the bicycle commuter and change public attitudes toward bicycling...all by providing and installing quality bicycle parking. We provide cycle parking that achieves the goals of transport and urban planners, satisfies the demands of architects and facility managers, and is loved by cyclists.

CycleSafe, Inc. logo

CycleSafe, Inc.

Click to Call

5211 Cascade RD SE, Suite 210, Grand Rapids, MI, 49546

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
ProPark Bike Lockers preview 1 ProPark Bike Lockers preview 2 ProPark Bike Lockers preview 3 ProPark Bike Lockers preview 4
ProPark Locker - View Thru
ProPark Locker - View Thru
ProPark Locker - View Thru
ProPark Bike Lockers preview 1
ProPark Bike Lockers preview 2
ProPark Bike Lockers preview 3
ProPark Bike Lockers preview 4

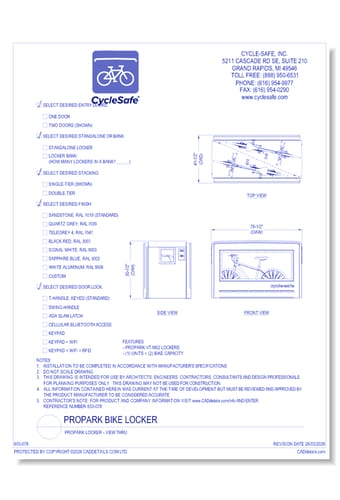

CAD Preview
DWG 1:1 Preview (Imperial)
3D Preview
ProPark Bike Lockers

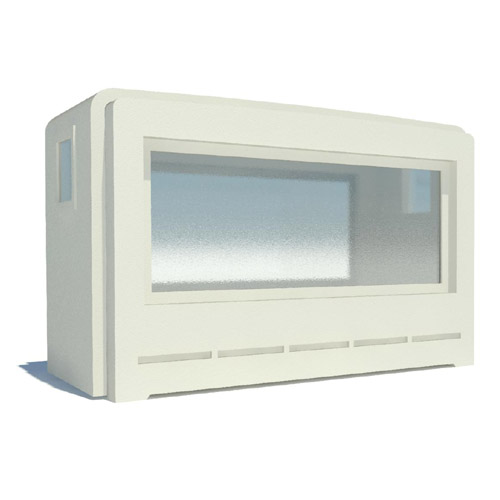

ProPark Locker - View Thru

CycleSafe ProPark® series is our flagship bicycle locker, offering one of the most space efficient and durable bike lockers on the market. Constructed of UL recognized fiber reinforced poly-resins and coated for UV-1 resistance, these tough lockers will outlast the competition. Tested to withstand level 1 hurricanes, with aerospace/automotive grade composites that measures in decades of dependability.

Each unit is comprised of two space efficient triangular compartments with a diagonal partition to form two space efficient triangular stalls to secure one bike per door. For compact spaces, a single door unit is available to accommodate one or two bikes in a single-sided, single door rectangular unit. ProPark’s modular design offers a wide range of models and options for access, security, and capacity to meet site and program requirements.

Combine the versatility, durability and low maintenance with a 50 year design life, ProPark bicycle lockers are the best value for secure bicycle parking.

Features
1-door access yields 20 square feet of storage for 1 or 2 bikes
2-door access yields 10 square feet of storage for each of 1 or 2 bikes
38” wide x 50” high x 77-5/8” length
Door opening – 30 3/4” wide x 45” height
Non corrosive composite materials
Hot compression molded SMC composite
High Strength ribs/bosses molded composites
Flame resistant to UL V-1 rating
Built-in patented Alloy high-security locks
Modular interlocking patented design – made in the USA
Re-locatable and expandable locker system
Adjustable-height leveling plates for mounting
High-security, full-length, door latch system
Ease of assembly – heavy-duty outdoor construction
UV and graffiti-resistant polyurethane finish
5-year warranty
Double stack for high-density parking
Accommodates many electric bikes and mopeds
Resistant to climatic conditions

Benefits
Lower life-cycle cost
Contoured roof repels water or dirt
Extended product life span over 50 years
UL/ UV corrosion protection
Low thermal conductivity

Options
Single sided door, one rectangular stall – 1 or 2 bikes
Master keyed systems available
Key management systems
View-through doors available for enhanced security
Swing handle for user’s padlock or D-lock
Interior coat hooks
Door-mounted storage bin
Door check “Hold-Back” kit
Weathershield for lock face
Floor panel
Rail-mounted base
Electronic access locks
AC power recharge center and outlets
Side displays and door panel logos
ProPark Bike Lockers

ProPark Locker - View Thru

CycleSafe ProPark® series is our flagship bicycle locker, offering one of the most space efficient and durable bike lockers on the market. Constructed of UL recognized fiber reinforced poly-resins and coated for UV-1 resistance, these tough lockers will outlast the competition. Tested to withstand level 1 hurricanes, with aerospace/automotive grade composites that measures in decades of dependability.

Each unit is comprised of two space efficient triangular compartments with a diagonal partition to form two space efficient triangular stalls to secure one bike per door. For compact spaces, a single door unit is available to accommodate one or two bikes in a single-sided, single door rectangular unit. ProPark’s modular design offers a wide range of models and options for access, security, and capacity to meet site and program requirements.

Combine the versatility, durability and low maintenance with a 50 year design life, ProPark bicycle lockers are the best value for secure bicycle parking.

Features
1-door access yields 20 square feet of storage for 1 or 2 bikes
2-door access yields 10 square feet of storage for each of 1 or 2 bikes
38” wide x 50” high x 77-5/8” length
Door opening – 30 3/4” wide x 45” height
Non corrosive composite materials
Hot compression molded SMC composite
High Strength ribs/bosses molded composites
Flame resistant to UL V-1 rating
Built-in patented Alloy high-security locks
Modular interlocking patented design – made in the USA
Re-locatable and expandable locker system
Adjustable-height leveling plates for mounting
High-security, full-length, door latch system
Ease of assembly – heavy-duty outdoor construction
UV and graffiti-resistant polyurethane finish
5-year warranty
Double stack for high-density parking
Accommodates many electric bikes and mopeds
Resistant to climatic conditions

Benefits
Lower life-cycle cost
Contoured roof repels water or dirt
Extended product life span over 50 years
UL/ UV corrosion protection
Low thermal conductivity

Options
Single sided door, one rectangular stall – 1 or 2 bikes
Master keyed systems available
Key management systems
View-through doors available for enhanced security
Swing handle for user’s padlock or D-lock
Interior coat hooks
Door-mounted storage bin
Door check “Hold-Back” kit
Weathershield for lock face
Floor panel
Rail-mounted base
Electronic access locks
AC power recharge center and outlets
Side displays and door panel logos
