EcoPark Bike Lockers

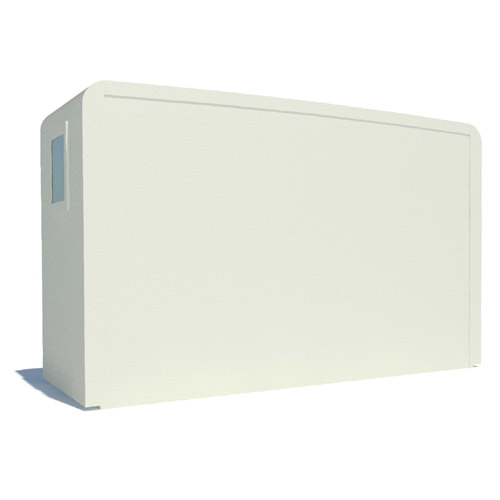

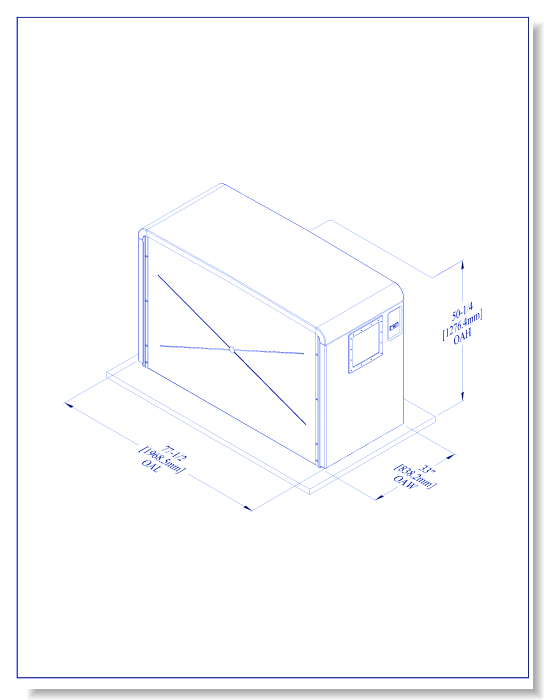

EcoPark Locker - Door View
EcoPark™ Series bike lockers are CycleSafe’s economy locker, offering the quality features of our flagship ProPark series with a reduced footprint. Each space efficient unit is comprised of two triangular stalls, forming a space reduced two door two bike unit, or a one door rectangular unit can be specified to accommodate one or two bikes.
Constructed with UL-rated fiber reinforced poly-resin composite doors and tops with optional low profile side panels. EcoPark units fit in compact spaces with a smaller footprint, or may be set against a wall with a single door for a one or two bike unit, or link in a row to accommodate multiple bikes.
When analyzing strength, low transportation costs, reduced maintenance expense and estimated over 25 year design life, EcoPark series bike lockers provide a better value for bike lockers.
Features
1-door access yields 18 square feet of storage for 1 bike
2-door access yields 9 square feet of storage for each of 1 or 2 bikes
33” wide x 50-1/4” high x 77-1/2” length
Door opening – 29” wide x 44” height
High Strength ribs/bosses molded composites
Compression molded SMC doors and tops
Optional side panels
Flame resistant to UL-1 rating
Built in Chicago Ace II high –security locks
Full length security latch bar system
TGIC frame system
Side by side freestanding design
Simple, easy to install
Re-locatable
1-year warranty
Ships kit form / quick assembly / low freight
Benefits
Extended product life span
Minimal maintenance costs
Moderate thermal conductivity
Contoured roof repels water or dirt
Options
Single-sided door entry/one or two bike rectangular unit
View-thru doors
Master keyed systems available
Key management systems
Swing handle for user’s padlock or D-lock
Interior coat hooks
Door check “Hold-Back” kit
Weathershield for lock face
Electronic access locks
AC power recharge center and outlets
Structural plastic/end panels/partitions
Media display panels
Side and door panel logos
Adjustable leveling feet
Bolted floor panel
Pre-assembled and shipped upon request
