Archatrak Pedestals And Pavers
Archatrak is a leading national supplier of porcelain pavers, Ipe wood tiles, interlocking tiles and adjustable height pedestals for creating exceptional residential and commercial walkways, patios, balconies, terraces and raised rooftop decks. Our specialty is porcelain, and we stock 50+ colors in styles like wood, stone, rustic and cement, and sizes ranging from cobblestones to 24”x24” and 48" and 94" planks.
Archatrak NM - Adjustable Height Deck Supports

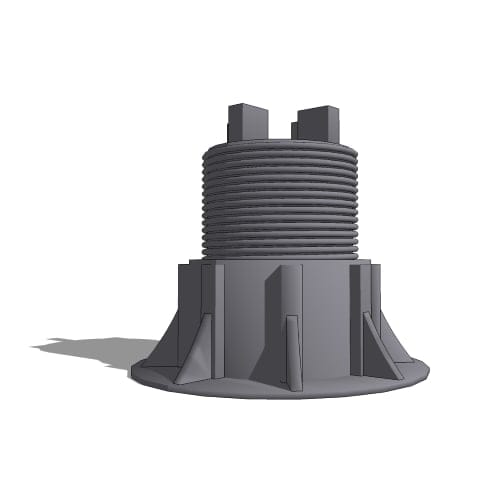

With a wide central column and base, Archatrak 'NM Maxi' adjustable height deck supports offer higher load capacity and greater stability than supports with smaller diameter columns, especially when laying pavers at heights above approx. 16”. A single piece head with a rubber surface and inbuilt spacer tabs ensures superior noise reduction and slip resistance. The fixed head design of the “NM Maxi” offers an economical alternative to our “Prime” pedestal with self-leveling head. Add-in head mounted twist rings can be supplied as required to provide variable slope compensation, each ring providing compensation up to 1%.

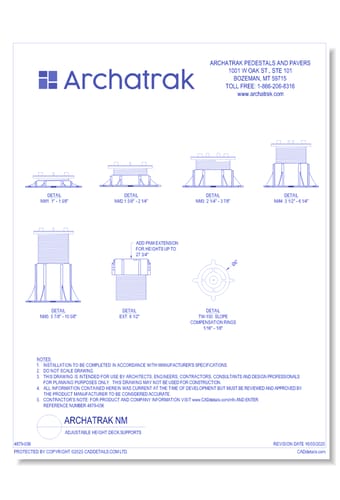

Five sizes of pedestals cover the range from 1” to 10 5/8”. Extension elements can be added to the NM5 pedestal to extend the workable height to over 39″.
Archatrak NM - Adjustable Height Deck Supports
With a wide central column and base, Archatrak 'NM Maxi' adjustable height deck supports offer higher load capacity and greater stability than supports with smaller diameter columns, especially when laying pavers at heights above approx. 16”. A single piece head with a rubber surface and inbuilt spacer tabs ensures superior noise reduction and slip resistance. The fixed head design of the “NM Maxi” offers an economical alternative to our “Prime” pedestal with self-leveling head. Add-in head mounted twist rings can be supplied as required to provide variable slope compensation, each ring providing compensation up to 1%.
Five sizes of pedestals cover the range from 1” to 10 5/8”. Extension elements can be added to the NM5 pedestal to extend the workable height to over 39″.
