Project Name: Villanova University Soccer/Lacrosse Field Construction Project

Location: Villanova University, Villanova PA

Client: Villanova University Athletics Department

Overview:

The Villanova University Soccer/Lacrosse Field Construction Project involves the strategic installation of specialized sports infrastructure to meet the competitive and expanding needs of a high-level NCAA program. This project aims to enhance field safety, media functionality, and sideline comfort while providing a clean, professional appearance aligned with Villanova’s athletic culture.

The project reflects Villanova’s commitment to excellence in collegiate athletics by incorporating equipment that enhances performance, safety, and field functionality. The installation of sports infrastructure provides a professional environment for student athletes while improving safety and efficient game-day operations.

Featured Products:

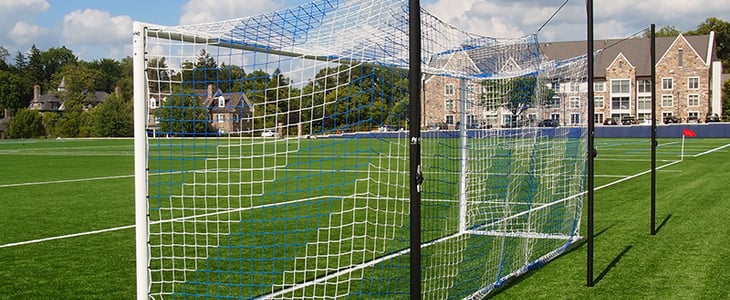

AAE Europa Box Semi-Permanent International Soccer Goals:

The SGR-SP-I is a professional-grade, semi-permanent soccer goal system featuring a premium “box” style frame that meets official international dimensions (24'W ×8'H ×6'D ×6'B), ideal for top-tier competition and training environments.

• Structural System: Constructed from heavy-wall aluminum with a seamless one-piece crossbar and groundbar, the frame is engineered with custom corner inserts to resist torque and maintain shape under intense play.
• Finish & Durability: Features a durable, powder-coated white finish and fully welded, hinge-style groundbar for lasting performance with minimal maintenance.
• Net Attachment: Integrated slotted extrusions and molded net clips allow for quick, secure, and uniform net installation.
• Design Benefits: Offers a sleek, modern aesthetic with excellent stability, reduced frame shifting, and easy field integration—proudly made in the USA and sold as a pair (nets not included).

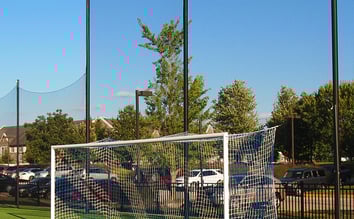

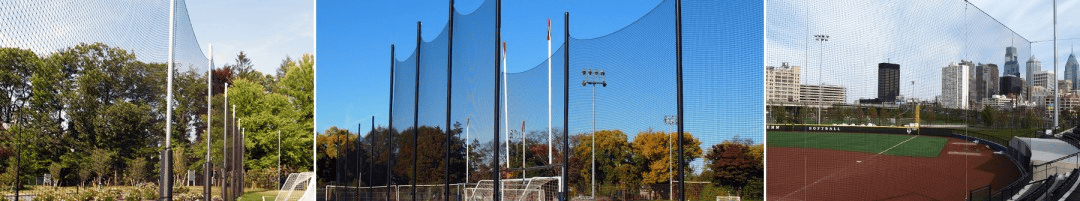

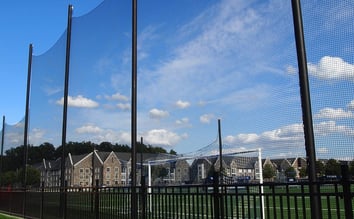

BallStopper Sports Netting – Straight Post:

Installed at multiple zones around the field, the MBS-30 and MBS-15 straight-post netting systems help prevent stray balls from leaving the field, protecting surrounding walkways and facilities. Designed with removable netting and ground sleeves, this system ensures quick takedown when needed.

• Structural System: Heavy-wall aluminum posts (4–8" dia.) stand 10'-40' tall, spaced per project needs, and anchor into ground sleeves.
• Netting & Cabling: Uses heavy-duty, UV-treated knotless netting with 1½" square openings (multipurpose sports balls), suspended from a vinyl-coated galvanized steel top cable to minimize sag; net tension is managed via a pulley system for wind protection all hardware is rust-resistant.
• Finish & Custom Options: Uprights come standard in mill aluminum finish with custom powder-coating available; optional ground sleeve plugs, and finish choices offer tailored aesthetics.
• Design Benefits: Provides safety for players, spectators, and nearby property with clean sightlines, easy net management, and long-term USA-made reliability.

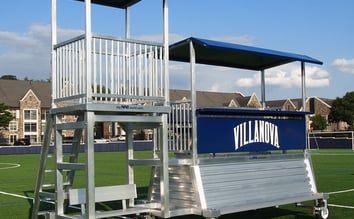

Portable 4' Elevated Press Box with Storage & Multi-Purpose Tower:

The DONKEY-2/UMP merges our 4' elevated press box with a sturdy video tower, delivering versatility as a scoring center, officiating hub, broadcasting booth, and video platform. The optional 160-cubic-foot on-field storage compartment offers added convenience and functionality—ideal for equipment, concessions, or lifesaving devices like AEDs.

• Structural System: Built on a heavy-wall aluminum frame with fluted flooring, ladder steps with safety handles, flat-free locking swivel casters, and an included anchor kit; the unit comfortably seats 5–6 people at an 8' viewing height and features an all-aluminum powder-coated weather canopy.
• Storage & Seating: Under-platform storage compartment measures approximately 2'-4"H ×4'-4"W ×9'-8"L, secured with a lock; bench includes an adjustable aluminum seat and an 18"-deep powder-coated table surface.
• Finish & Custom Options: Offered in 14 standard colors with matching banners and canopy—custom powder coating and decal banners available; optional packages include tow hitch, weather screens, cushions, cup holders, power outlets, and announcer’s audio system.
• Design Benefits: A versatile, USA-made solution that combines functionality, mobility, and weather protection; fully portable yet securable, supporting everything from scoring to concessions in one durable unit.

Players Sideline Shelter:

The PSS is a semi-permanent, all-weather team shelter engineered to protect athletes and staff from rain, wind, snow, and sun, while offering integrated storage behind the bench—delivered fully assembled to streamline setup.

• Structural System: Features an all-aluminum top frame welded at nearly 600 points and a hot-dip galvanized steel bottom frame, measuring 8'H x16'W ×7'D, and engineered to resist sustained 75 mph winds when properly anchored.
• Storage & Seating: Equipped with tinted ¼" plexiglass side and rear panels that shield from harsh weather yet preserve visibility; includes anodized aluminum benches (12" seat, 10" backrest). A 24"-deep anodized aluminum shelf with hinged pneumatic cover adds approximately 45 sq ft of secure behind-the-bench storage space.
• Finish & Options: Canopy and frame are powder-coated in 14 standard colors (custom finishes and graphics available); optional trainer’s table and wheel kit upgrade seating functionality and portability.
• Design Benefits: Offers robust weather protection for athletes, enhanced storage for gear and mobility—perfect for sideline use.

Project Goals:

• Enhance safety for players, spectators, and surrounding areas
• Provide world-class playing conditions for NCAA soccer and lacrosse
• Ensure compliance with collegiate athletic regulations and safety codes
• Increase the functionality of the field for game-day operations and training
• Improve media and coaching capabilities while creating a clean, professional sideline presence
