Cable Connection, The (Ultra-tec Cable Railing)
The Cable Connection was established in 1991. Its principals have been in the wire rope business for over thirty years and are specialists in manufacturing cable assemblies and fittings for up to 3/8 in. diameter cable. Since 1998, Ultra-tec® Cable Railing Infill has been a favorite of architects, specifiers, and builders. With its signature Invisiware® fittings that are concealed inside the end post and sleekly designed outside-the-post fittings, Ultra-tec® Cable Railing Infill provides an attractive alternative to conventional barrier rail systems and can be found in projects throughout North America.
Cable Railing Hardware for Metal Posts — Fixed Jaw
Collections:
Cable Railing Hardware and Accessories

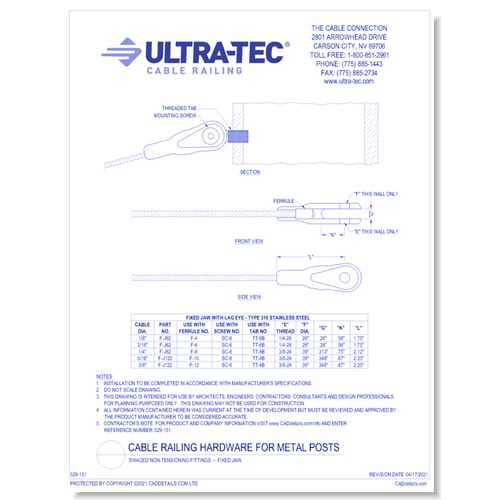

The Fixed Jaw is an exposed, swaged, non-tensioning, face-of-the-post-mounted fitting that is suitable for use on level or pitched runs and is available for 1/8”, 3/16”, 1/4”, 5/16”, and 3/8” diameter 1x19 stainless steel cable.
The Fixed Jaw can be used with any tensioning fitting on the opposite end of the run. This fitting attaches to the metal end post by installing a Threaded Tab into a pre-drilled and tapped hole in the end post and attaching the Fixed Jaw to the threaded tab with a button head screw. The cable is retained within the Fixed Jaw fitting by a ferrule swaged onto the end of the cable. Screw and threaded tab are sold separately.
While this fitting can be used on pitched or level runs, it is most appropriate for pitched runs because the Fixed Jaw pivots at the tab. Use of this fitting requires an appropriately sized ferrule that is swaged onto the cable, which must also be purchased separately (ferrule information on page 8).
This fitting was designed to be compatible in appearance to the Adjust-A-Jaw® tensioning fitting.
Cable Railing Hardware for Metal Posts — Fixed Jaw
Collections:
Cable Railing Hardware and Accessories
The Fixed Jaw is an exposed, swaged, non-tensioning, face-of-the-post-mounted fitting that is suitable for use on level or pitched runs and is available for 1/8”, 3/16”, 1/4”, 5/16”, and 3/8” diameter 1x19 stainless steel cable.
The Fixed Jaw can be used with any tensioning fitting on the opposite end of the run. This fitting attaches to the metal end post by installing a Threaded Tab into a pre-drilled and tapped hole in the end post and attaching the Fixed Jaw to the threaded tab with a button head screw. The cable is retained within the Fixed Jaw fitting by a ferrule swaged onto the end of the cable. Screw and threaded tab are sold separately.
While this fitting can be used on pitched or level runs, it is most appropriate for pitched runs because the Fixed Jaw pivots at the tab. Use of this fitting requires an appropriately sized ferrule that is swaged onto the cable, which must also be purchased separately (ferrule information on page 8).
This fitting was designed to be compatible in appearance to the Adjust-A-Jaw® tensioning fitting.
