Hunter Industries Collections Sensors ET Sensor System
Hunter Industries logo

Hunter Industries

Hunter Industries is among the world's leading manufacturers of water-efficient irrigation products. Hunter's valves, controllers and sprinklers provide healthy, aesthetically pleasing landscapes worldwide. Hunter helps ensure the success of all of its partners - from distributors to contractors to the end-use consumer - by providing a wide range of technical support programs, education / training initiatives, and business development initiatives. Hunter: The Irrigation Innovators.

Hunter Industries logo

Hunter Industries

Click to Call

1940 Diamond Street, San Marcos, CA, 92078

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
ET Sensor System preview 1
ET Sensor System preview 1

ET Sensor System

Collections: Sensors

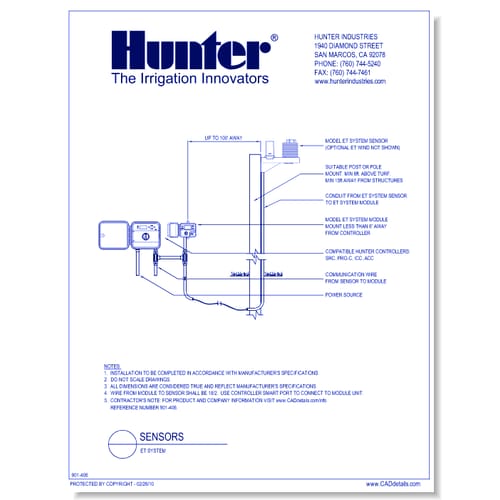

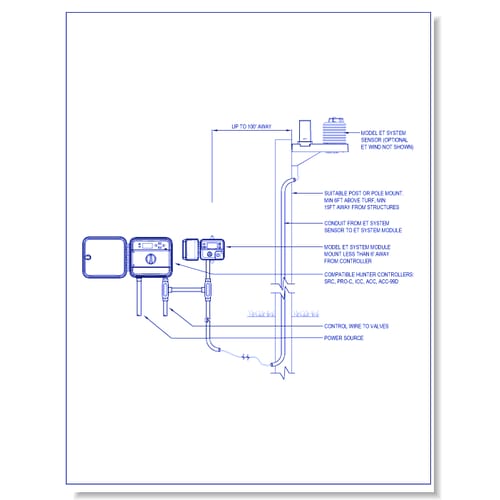

The Hunter ET Sensor is designed specifically for use with IMMS central control systems, exclusively with ACC controllers. ET Sensor uses solar radiation, air temperature, relative humidity, and wind (either average, or actual with the optional ET Wind sensor) to calculate evapotranspiration and communicate it to the central software via the host controller's communication. Hunter's IMMS-ET software calculates new application amounts and run times for each station, and downloads them back to all ACC controllers. ET Sensor also measures actual rainfall, which is applied to the soil reservoir before new application amounts are calculated. One ET Sensor per micro-climate is all that is needed and recommended, with a virtually unlimited number possible per central control system.

ET Sensor System

Collections: Sensors

The Hunter ET Sensor is designed specifically for use with IMMS central control systems, exclusively with ACC controllers. ET Sensor uses solar radiation, air temperature, relative humidity, and wind (either average, or actual with the optional ET Wind sensor) to calculate evapotranspiration and communicate it to the central software via the host controller's communication. Hunter's IMMS-ET software calculates new application amounts and run times for each station, and downloads them back to all ACC controllers. ET Sensor also measures actual rainfall, which is applied to the soil reservoir before new application amounts are calculated. One ET Sensor per micro-climate is all that is needed and recommended, with a virtually unlimited number possible per central control system.

Products
ET System
ET System
ET System
ET System
Sensors - ET System
Sensors - ET System
ET System ET System
ET System ET System
Sensors - ET System Sensors - ET System
