Haws Corporation Collections Emergency Equipment Model 7500: Portable Gravity Fed Eyewash
Haws Corporation logo

Haws Corporation

All Haws drinking fountain and electric water cooler models are designed to be lead-free, environmentally safe and meet ADA requirements. Haws Corporation has a registered ISO 9001 Management System. Every product that leaves the Haws plant is of the highest quality and craftsmanship and is built for years of service.

Haws Corporation logo

Haws Corporation

Click to Call

1455 Kleppe Lane, Sparks, NV, 89431-6457

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Model 7500: Portable Gravity Fed Eyewash preview 1
Model 7500: Portable Gravity Fed Eyewash preview 1

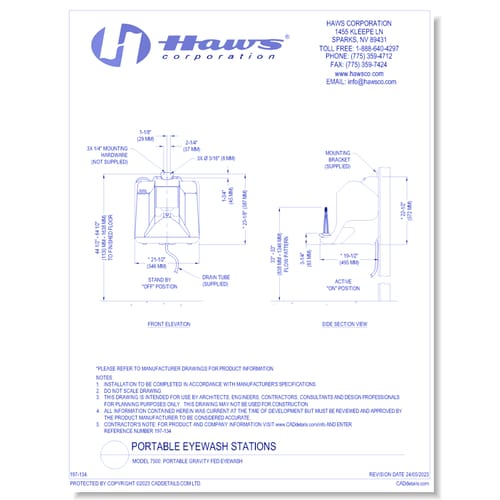

Model 7500: Portable Gravity Fed Eyewash

Collections: Emergency Equipment

Haws portable Model 7500 is ideal for remote locations. Using gravity to supply a continuous flow of clean water to injured personnel for a full 15 minutes at .4 gpm (1.5 L), this model is a reliable source for safety. Recognizing the 7500's full patterned flushing feature, those working in remote areas can't help but feel confident with this piece of emergency equipment day after day.


  • Featuring a FDA approved high-density green polyethylene tank easily activated by pulling the yellow activation arm down to the open position
  • A wide-fill opening with threaded cap permits easy inspection, cleaning and filling
  • Relocation is simple due to the easily mounted (bracket included) and light design of this 16 gallon (60.6 L) portable
  • Measurements: 22-1/2" high, 21-1/2" wide, 19-1/2" deep (57.2 x 54.6 x 49.5 cm)

Certified by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Model 7500: Portable Gravity Fed Eyewash

Collections: Emergency Equipment

Haws portable Model 7500 is ideal for remote locations. Using gravity to supply a continuous flow of clean water to injured personnel for a full 15 minutes at .4 gpm (1.5 L), this model is a reliable source for safety. Recognizing the 7500's full patterned flushing feature, those working in remote areas can't help but feel confident with this piece of emergency equipment day after day.


  • Featuring a FDA approved high-density green polyethylene tank easily activated by pulling the yellow activation arm down to the open position
  • A wide-fill opening with threaded cap permits easy inspection, cleaning and filling
  • Relocation is simple due to the easily mounted (bracket included) and light design of this 16 gallon (60.6 L) portable
  • Measurements: 22-1/2" high, 21-1/2" wide, 19-1/2" deep (57.2 x 54.6 x 49.5 cm)

Certified by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
