Black Security Products Collections Security Fencing SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)
Black Security Products logo

Black Security Products

Black Security Products is a worldwide leader and provider for perimeter security via Access Control Points (ACP) with an emphasis on Anti-Terrorism/Force Protection (AT/FP). Headquartered in Houston, TX, BSP is a perimeter security manufacturer, systems integration and installation company with an extraordinary global client list (CONUS/OCONUS) for both passive and active barriers.

Black Security Products logo

Black Security Products

Click to Call

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 1 SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 2 SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 3 SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 4 SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 5 SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 6
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 1
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 2
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 3
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 4
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 5
SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)  preview 6

SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)

Collections: Security Fencing

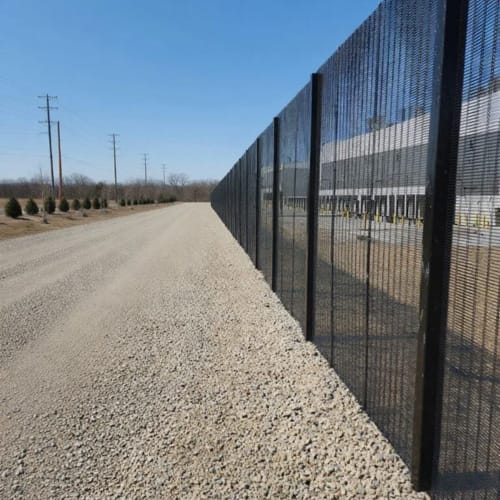

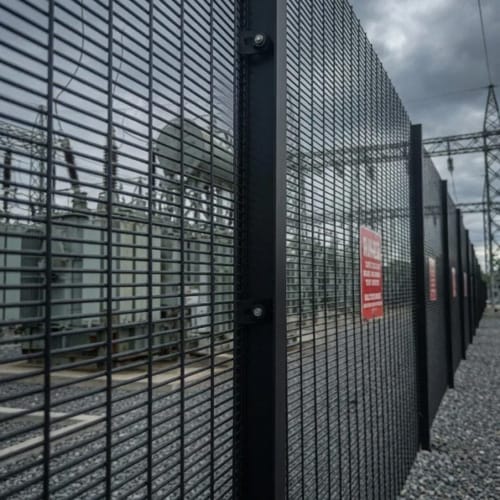

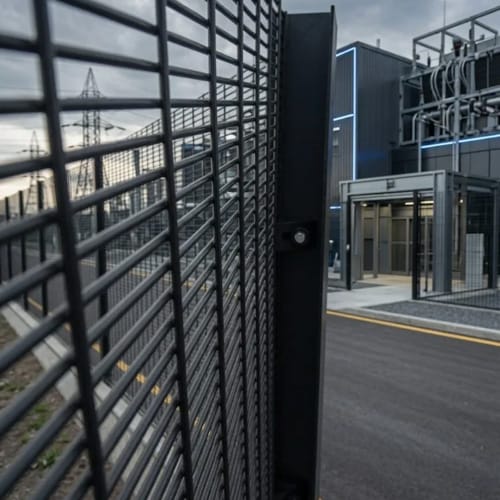

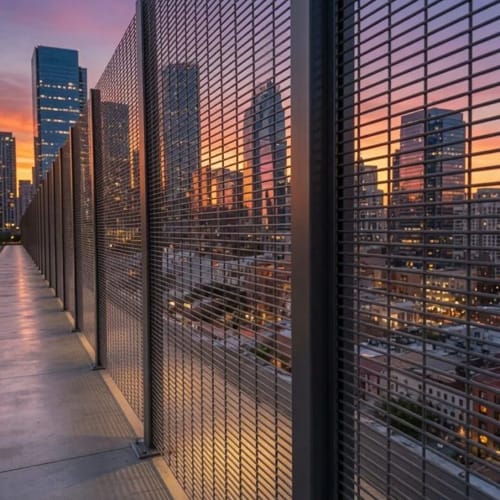

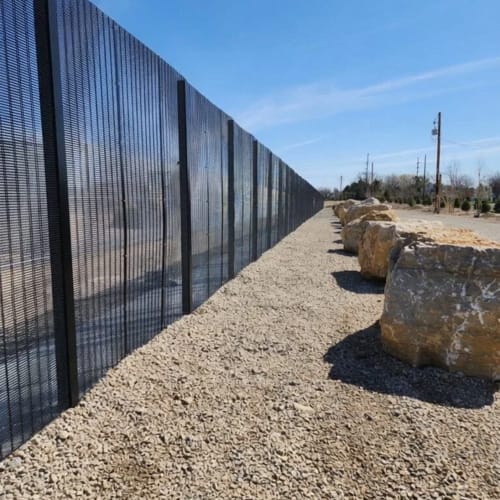

Steel palisade deters. Welded wire mesh defeats — and does it while giving cameras and guards a near-transparent line of sight the solid pale can’t.

SecureMesh is built on 358 mesh: a 3″ × 0.5″ aperture so tight it denies finger- and toe-holds, welded at every intersection so it resists bolt-cutters and grinders far better than bolted or chain-link systems. The result is a barrier that is genuinely hard to climb and hard to cut — the two things that actually matter at the fence line.

And unlike the diversified fence giants, manufacturing high-security perimeter is all BSP does. That focus means dedicated capacity, shorter lead times, and pricing that tracks real steel and process cost — not thousand-SKU catalog overhead.

SecureMesh Integrated

SecureMesh Integrated combines the anti-climb mesh line with BSP’s crash￾rated passive cable barrier — one system that stops the climber and the 15,000-lb truck, from one manufacturer, under one warranty.

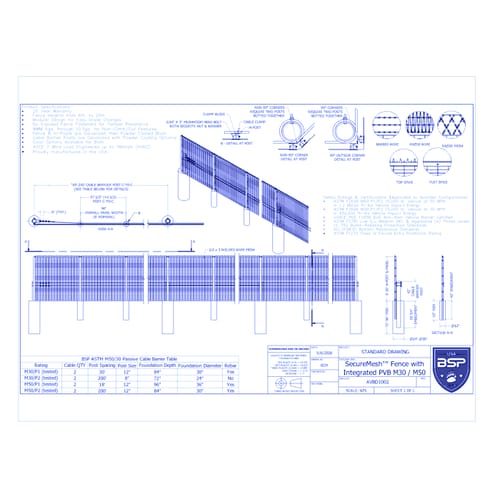

The barrier is crash-tested to ASTM F2656 at both the M30 and M50 levels, each at P1 and P2 penetration ratings, by accredited crash labs — and every one is listed by the U.S. Army Corps of Engineers Protective Design Center on the DoD Anti-Ram Vehicle Barrier List, the same public list a federal specifier checks when qualifying a barrier. Tested configurations span up to 200 ft between anchors, sharply reducing foundations on long runs.

SecureMesh™ Integrated PVB M30-M50 (AVBD 1002)

Collections: Security Fencing

Steel palisade deters. Welded wire mesh defeats — and does it while giving cameras and guards a near-transparent line of sight the solid pale can’t.

SecureMesh is built on 358 mesh: a 3″ × 0.5″ aperture so tight it denies finger- and toe-holds, welded at every intersection so it resists bolt-cutters and grinders far better than bolted or chain-link systems. The result is a barrier that is genuinely hard to climb and hard to cut — the two things that actually matter at the fence line.

And unlike the diversified fence giants, manufacturing high-security perimeter is all BSP does. That focus means dedicated capacity, shorter lead times, and pricing that tracks real steel and process cost — not thousand-SKU catalog overhead.

SecureMesh Integrated

SecureMesh Integrated combines the anti-climb mesh line with BSP’s crash￾rated passive cable barrier — one system that stops the climber and the 15,000-lb truck, from one manufacturer, under one warranty.

The barrier is crash-tested to ASTM F2656 at both the M30 and M50 levels, each at P1 and P2 penetration ratings, by accredited crash labs — and every one is listed by the U.S. Army Corps of Engineers Protective Design Center on the DoD Anti-Ram Vehicle Barrier List, the same public list a federal specifier checks when qualifying a barrier. Tested configurations span up to 200 ft between anchors, sharply reducing foundations on long runs.
