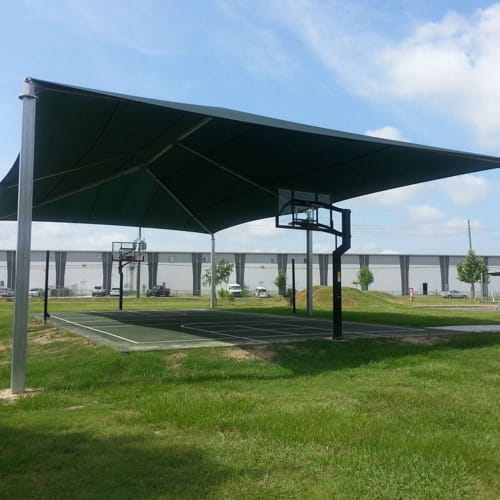

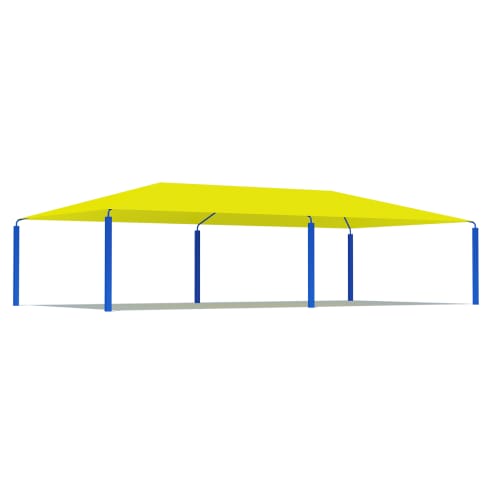

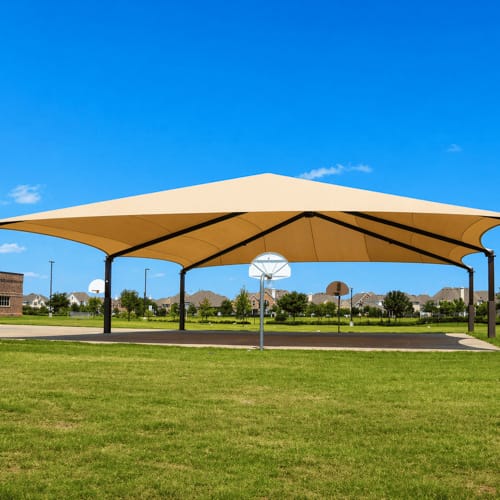

Super Span Shade 50'x60'
The 50' x 60' Super Span Shade provides substantial coverage for large outdoor spaces requiring a single, expansive shade solution. Its commercial-grade construction and customizable design make it well suited for sports facilities, athletic areas, parking lots, large picnic areas, playgrounds, schools, parks, and other high-use environments where superior sun coverage is needed.
Specifications:
Shade Size: 50' x 60'
Eave Height: 8'–16'
Mounting Option: In-Ground Mount
Design: Large-span commercial shade structure
Shade Material: Shadeoline FR / Commercial 95 by Gale Pacific
UV Protection: Up to 95%
Fabric Mass: Minimum 5.8 oz./sq. yd.
Tensile Strength: ASTM 5035-95
Tensile Strength Rating: Warp 91 lbf/in. / Weft 162 lbf/in.
Fabric Life Expectancy: Minimum 8 years of continuous exposure
Fading: Minimum fading after 5 years
Weatherability: ASTM G53
Fire Rating: CA Fire Marshal Title 19
Flame Spread: 5
Smoke Density: 95
Temperature Stability: 13°F–176°F
Wind Load: Up to 95 mph with 3-second gusts up to 110 mph
Upright Posts: 3.5""–12"" round or square carbon steel pipe
Post Wall Thickness: 1/8""–1/4""
Super Span Top Frame: 5"" square carbon steel tubing with 1/8"" wall
Arm Support Fittings: Galvanized tubing with connecting sleeves
Finish: TGIC polyester powder coating with zinc-rich epoxy primer over sandblasted metal substrate
Fabric Warranty: 5-year conditional warranty plus an additional 5-year prorated warranty
Steelwork Warranty: 10 years
