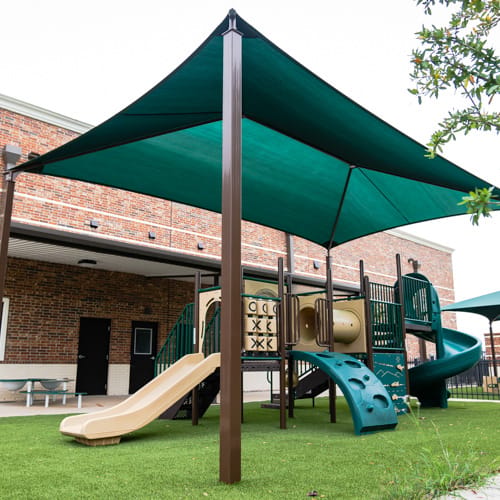

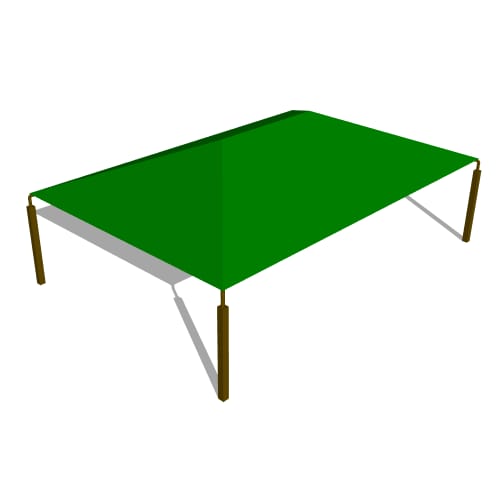

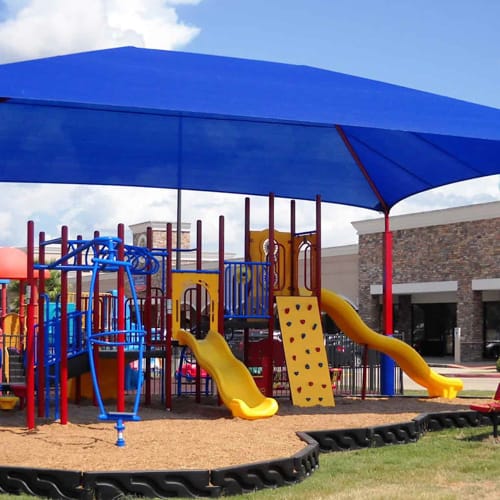

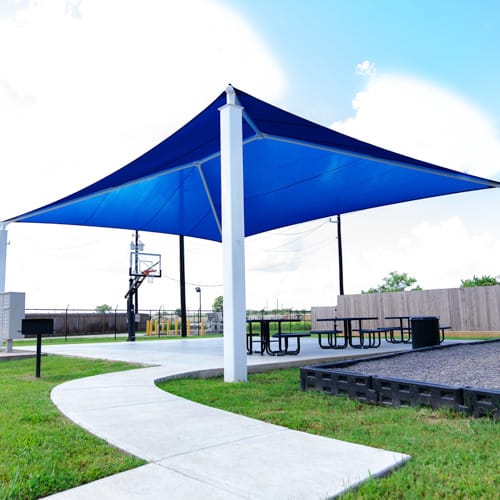

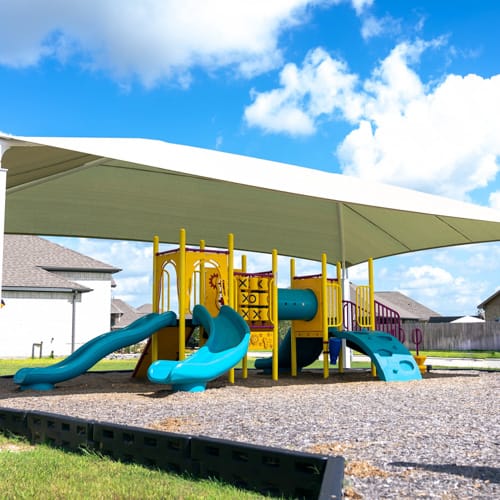

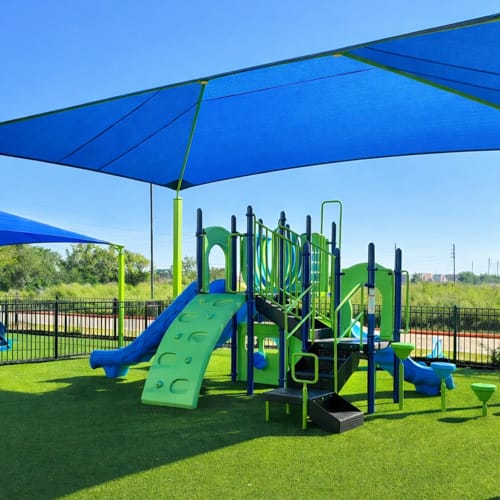

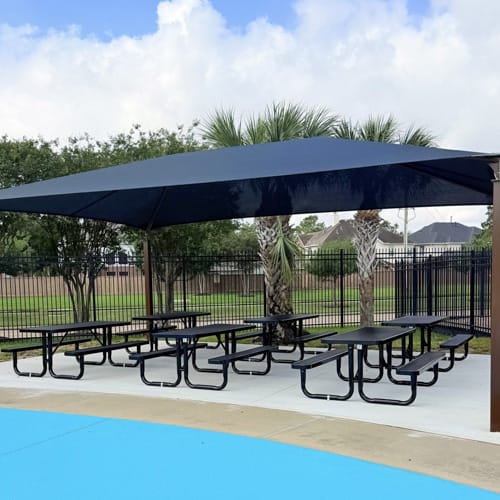

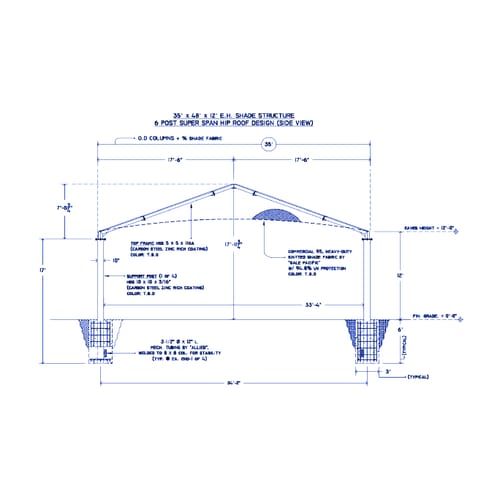

Hip Roof Shade 35'x48'
The 35' x 48' Hip Roof Shade provides extensive sun coverage for large commercial and recreational spaces. Combining a proven hip roof design with durable commercial-grade construction, this structure provides superior shade while enhancing the appearance and usability of the surrounding area. It is ideal for large playgrounds, pools, schools, parks, recreation facilities, and community gathering spaces.
Specifications:
Shade Size: 35' x 48'
Eave Height: 8'–16'
Mounting Options: Surface Mount or In-Ground Mount
Shade Material: Shadeoline FR / Commercial 95 by Gale Pacific
UV Protection: Up to 95%
Fabric Mass: Minimum 5.8 oz./sq. yd.
Tensile Strength: ASTM 5035-95
Tensile Strength Rating: Warp 91 lbf/in. / Weft 162 lbf/in.
Fabric Life Expectancy: Minimum 8 years of continuous exposure
Weatherability: ASTM G53
Fire Rating: CA Fire Marshal Title 19
Flame Spread: 5
Smoke Density: 95
Temperature Stability: 13°F–176°F
Wind Load: Up to 95 mph with 3-second gusts up to 110 mph
Upright Posts: 3.5""–12"" round or square carbon steel pipe
Frame: Commercial-grade carbon and galvanized steel
Finish: TGIC polyester powder coating with zinc-rich epoxy primer
Fabric Warranty: 5-year conditional warranty plus an additional 5-year prorated warranty
Steelwork Warranty: 10 years
