1-800-Bollards Collections Crash Tested Bollards Low Speed Core Drill Crash Tested Bollard
1-800-Bollards logo

1-800-Bollards

Design content meets industry standards for being specified into a project. Meets industry standards for quality and usability. Optimized for seamless project integration. Maintained for accuracy and performance.

1-800-BOLLARDS is a Woman-Owned business and supplier of architectural and security bollards that protect property, assets and people across the world. Since 2008, 1-800-BOLLARDS, Inc. has supplied bollards to major retailers, stadiums and arenas, cities and municipalities, government facilities, colleges and universities to name a few.

1-800-Bollards logo

1-800-Bollards

Click to Call

10-Hughes Suite A-105, Irvine, CA, 92618

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Low Speed Core Drill Crash Tested Bollard preview 1
Low Speed Core Drill Crash Tested Bollard preview 1

Low Speed Core Drill Crash Tested Bollard

Collections: Crash Tested Bollards

1-800-BOLLARDS Core Drill low-speed crash test standard (ASTM F3016) (5000 lb. vehicle @ 10/20/30 mph) fixed bollard is the simplest way to achieve crash rated security. Once installed in an engineered footing, a fixed bollard will provide a sturdy and long-lasting solution for asset, property, and pedestrian protection.


Core Drill bollards can be manufactured from carbon steel and are available in 200+ powder coat colors, or manufactured from Type 304 stainless steel or, for harsher environments, from Type 316 stainless steel, and the stainless steel is polished to a #4 finish for long-lasting durability.


AREAS OF USE

LIGHT SECURITY 3"/4"

  • Parking Lots
  • Parking Structure
  • Entrances
  • Retail Storefronts
  • Loading Areas
  • Utilities

MEDIUM SECURITY 5"/6"

  • Hospitals
  • Malls
  • Retail/Lifestyle Centers
  • Stadiums/Arenas
  • Colleges/Universities
  • Industrial/Commercial

HIGH SECURITY 8"/10"/12"

  • Gov't Facilities
  • Power Plants
  • Financial Institutes
  • Chemical Plants
  • Waste Water Plants
  • Military Facilities

Low Speed Core Drill Crash Tested Bollard

Collections: Crash Tested Bollards

1-800-BOLLARDS Core Drill low-speed crash test standard (ASTM F3016) (5000 lb. vehicle @ 10/20/30 mph) fixed bollard is the simplest way to achieve crash rated security. Once installed in an engineered footing, a fixed bollard will provide a sturdy and long-lasting solution for asset, property, and pedestrian protection.


Core Drill bollards can be manufactured from carbon steel and are available in 200+ powder coat colors, or manufactured from Type 304 stainless steel or, for harsher environments, from Type 316 stainless steel, and the stainless steel is polished to a #4 finish for long-lasting durability.


AREAS OF USE

LIGHT SECURITY 3"/4"

  • Parking Lots
  • Parking Structure
  • Entrances
  • Retail Storefronts
  • Loading Areas
  • Utilities

MEDIUM SECURITY 5"/6"

  • Hospitals
  • Malls
  • Retail/Lifestyle Centers
  • Stadiums/Arenas
  • Colleges/Universities
  • Industrial/Commercial

HIGH SECURITY 8"/10"/12"

  • Gov't Facilities
  • Power Plants
  • Financial Institutes
  • Chemical Plants
  • Waste Water Plants
  • Military Facilities
Products
30 MPH Low Speed Crash Tested Removable Core Drill Bollards - 8" Diameter
30 MPH Low Speed Crash Tested Removable Core ...

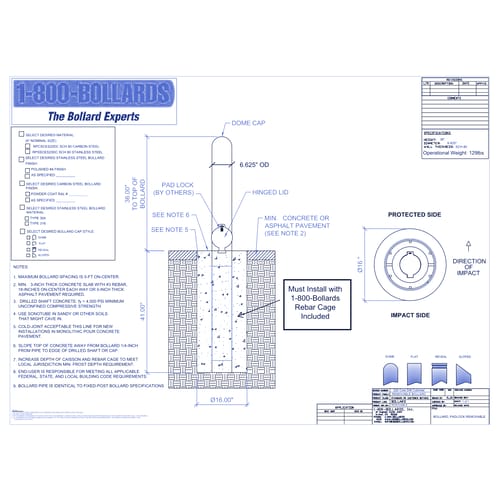

20 MPH Low Speed Crash Tested Removable Core Drill Bollards - 6" Diameter
20 MPH Low Speed Crash Tested Removable Core ...
10 MPH Low Speed Crash Tested Removable Core Drill Bollards - 4" Diameter
10 MPH Low Speed Crash Tested Removable Core ...

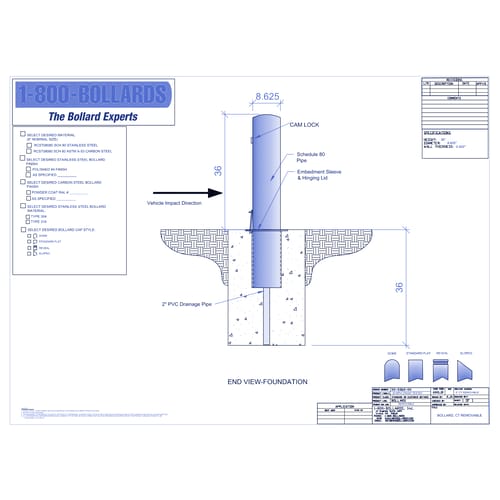

30 MPH Low Speed Crash Tested Internal locking Core Drill Bollards -  8" Diameter
30 MPH Low Speed Crash Tested Internal lockin ...
20 MPH Low Speed Crash Tested Internal locking Core Drill Bollards  - 6" Diameter
20 MPH Low Speed Crash Tested Internal lockin ...
10 MPH Internal Low Speed Crash Tested locking Core Drill Bollards - 4" Diameter
10 MPH Internal Low Speed Crash Tested lockin ...
30 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 8" Diameter
30 MPH Low Speed Crash Tested Fixed Core Dril ...
20 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 6" Diameter
20 MPH Low Speed Crash Tested Fixed Core Dril ...

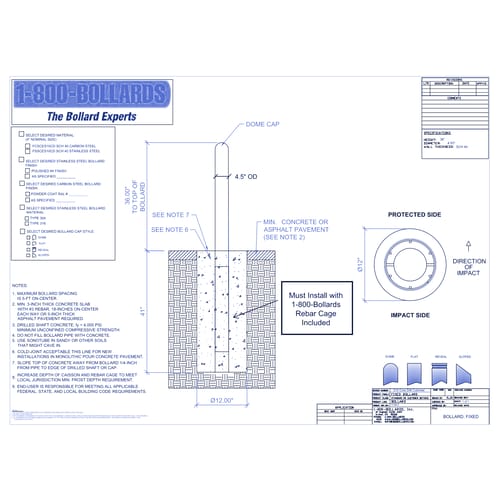

10 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 4" Diameter
10 MPH Low Speed Crash Tested Fixed Core Dril ...
30 MPH Low Speed Crash Tested Removable Core Drill Bollards - 8" Diameter 30 MPH Low Speed Crash Tested Removable Core Drill Bollards - 8" Diameter
20 MPH Low Speed Crash Tested Removable Core Drill Bollards - 6" Diameter 20 MPH Low Speed Crash Tested Removable Core Drill Bollards - 6" Diameter
10 MPH Low Speed Crash Tested Removable Core Drill Bollards - 4" Diameter 10 MPH Low Speed Crash Tested Removable Core Drill Bollards - 4" Diameter
30 MPH Low Speed Crash Tested Internal locking Core Drill Bollards -  8" Diameter 30 MPH Low Speed Crash Tested Internal locking Core Drill Bollards - 8" Diameter
20 MPH Low Speed Crash Tested Internal locking Core Drill Bollards  - 6" Diameter 20 MPH Low Speed Crash Tested Internal locking Core Drill Bollards - 6" Diameter
10 MPH Internal Low Speed Crash Tested locking Core Drill Bollards - 4" Diameter 10 MPH Internal Low Speed Crash Tested locking Core Drill Bollards - 4" Diameter
30 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 8" Diameter 30 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 8" Diameter
20 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 6" Diameter 20 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 6" Diameter
10 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 4" Diameter 10 MPH Low Speed Crash Tested Fixed Core Drill Bollards - 4" Diameter
